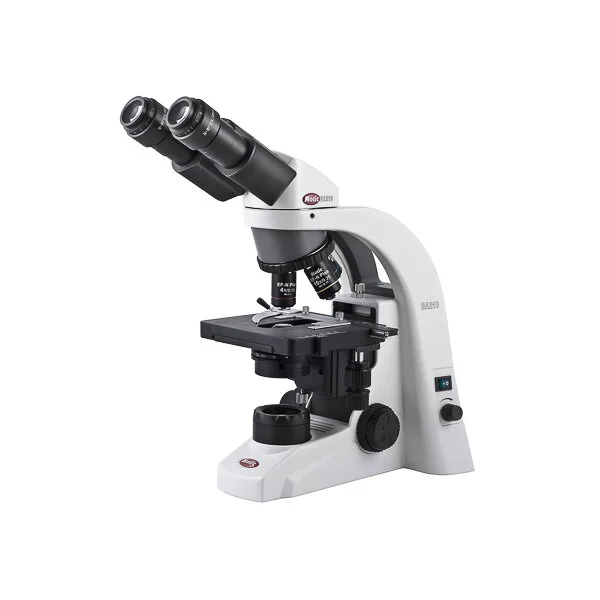

Labbox Biological Microscope Premium, BA-210 LED and BA-210 LED Digital

The Labbox Biological Microscope Premium, BA-210 LED and BA-210 LED Digital enables precise microscopic examinations in professional laboratories and research facilities. With its high-quality construction, integrated 3W LED illumination and optional digital version with integrated camera, this microscope sets the standard for reliability and flexibility. Compared to other similar devices on the market, its robust mechanics, long-lasting LED illumination and the excellent optical quality of the EC plan achromatic objectives are particularly impressive.

Full details

With this model, users benefit from ergonomic Siedentopf heads that offer a comfortable 30° tilt. Depending on the version, a binocular or trinocular head is available, whereby the digital model already has an integrated CMOS camera (1/2″ sensor, 2048 x 1536 pixels) with USB 2.0 connection. This makes it easy to capture image data in high resolution and transfer it directly to a PC or Mac. This is supported by the supplied Motic Images Plus 3.0 software, which offers a wide range of options for calibration, capture and image analysis.

The optical performance is based on the Color Corrected Infinity System (CCIS), which, in conjunction with plan achromatic EC-Plan lenses, ensures a sharp and high-contrast image. The inverted quadruple nosepiece carries the most important magnifications (4X, 10X, 40X and 100X, the latter as an oil immersion objective) and allows fast switching between different viewing areas. A focusable Abbe condenser (A.N. 1.25) with iris diaphragm ensures fine regulation of the incidence of light. Thanks to the LED illumination with intensity control, uniform illumination of the specimen is guaranteed, making it much easier to observe fine structures.

An overview of the key technical data

– Binocular or trinocular Siedentopf head (30° inclined, 360° rotatable)
– Integrated digital camera (digital model only) with 2048 x 1536 pixels
– EC Plan objectives: 4X, 10X, 40X (retractable), 100X (retractable, oil)
– LED illumination (3W) with brightness control
– Mechanical stage with coaxial controls
– Abbe condenser (A.N. 1.25) with iris diaphragm and slit
– 5-year guarantee on optical and mechanical components

In addition, important accessories such as a blue filter (Ø45 mm), a dust cover, an Allen key for adjustment and 5 ml immersion oil are included in the scope of delivery. A calibration preparation is also included for the digital model in order to professionally meet metrological requirements. The universal transformer (100-240 V) bears a CE mark and ensures reliable operation of the microscope worldwide.

Certifications and standards

This model complies with European safety standards and bears the CE mark. Thanks to the 5-year warranty – on both the mechanical and optical components – long-term investment security is guaranteed. Especially in accredited laboratories, which have to comply with strict quality standards, this microscope is an excellent choice due to its high precision and stability.

Application examples

– Pathology laboratories: tissue and cell examinations as well as routine histological analyses
– Research institutions: Analysis of microorganisms in biology, pharmacy and biotechnology
– Clinical diagnostics: observation of blood and urine samples to identify abnormalities
– Universities and teaching environments: Teaching microscopic techniques and training future professionals

The plan-achromatic correction of the EC-Plan objectives allows even complex specimens with differently colored cells or tissue structures to be displayed in high contrast. Typical applications include the examination of bacteria, fungi or cell cultures using 100X oil immersion. The integrated software also offers the option of documenting and further processing images – for use in lectures or publications, for example.

FAQs

How to align the microscope correctly

Make sure that the device is placed on a stable, vibration-free surface. Adjust the stage using the coaxial coarse and fine focusing until your specimen is clearly visible. Make sure to clean all objectives regularly to ensure consistent image quality.

Can the illumination intensity be adjusted individually?

Yes, the 3W LED illumination can be continuously adjusted to the respective lighting conditions and sample requirements using the rotary control on the side. This means you always get an optimum contrast ratio.

What maintenance measures are necessary

Regular cleaning of the lenses and eyepieces is recommended. Only use lint-free cloths and suitable cleaning solutions for optical systems. Technical components such as the nosepiece and focusing knobs should be checked for dust at regular intervals.

Can the digital camera and software make readjustments?

The included Motic Images Plus 3.0 software enables functions such as measurement and calibration in addition to capturing image data. In this way, samples can be measured precisely and images that have already been captured can be post-processed.

Conclusion

This modern microscope meets the highest standards of precision, ergonomics and durability. The robust mechanics, combined with clear and brightly illuminated optics, make any type of microbiological or histological analysis efficient and convenient. Thanks to CE marking and a 5-year guarantee, it is suitable for a wide range of applications in the long term. The digital model with integrated camera also offers comprehensive documentation options. This makes the device the ideal choice for professional laboratories, research institutions and teaching environments that value the best image quality and reliable results.
