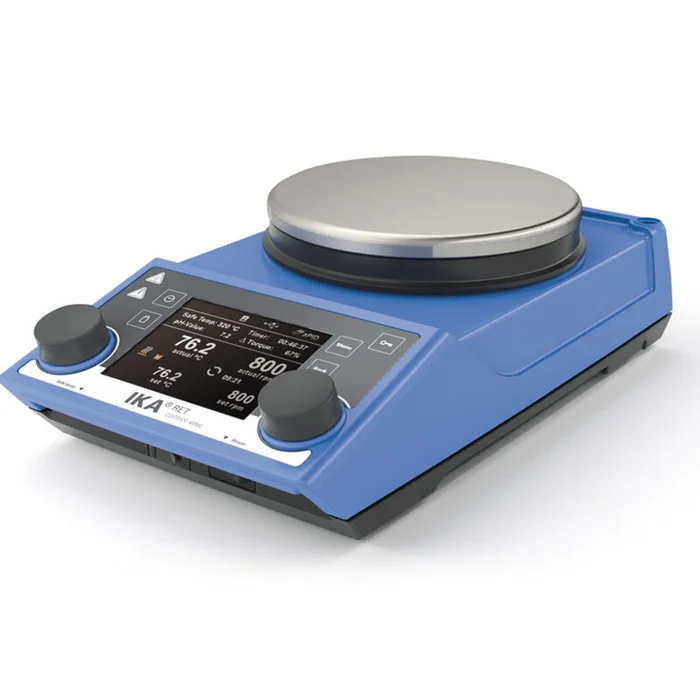

IKA magnetic stirrer RET control-visc
The IKA RET control-visc magnetic stirrer is a state-of-the-art laboratory device that has been specially developed for demanding stirring and heating tasks. With its robust design and a wide range of functions, this device is ideal for use in chemical, biological and pharmaceutical laboratories. The RET control-visc offers precise control of stirring speed and temperature, making it a preferred choice over similar products on the market. Similar to the IKA magnetic stirrer Plate (RCT digital), the RET control-visc offers high reliability and ease of use.
Technical data and functions
The IKA RET control-visc magnetic stirrer is characterized by a number of technical features that make it an indispensable tool in any laboratory:
- Stirring volume:Up to 20 liters
- Heating power:600 W
- Temperature range:Room temperature to +340 °C
- Speed range:50 – 1700 rpm
- Material (housing):Stainless steel
- Interfaces:RS 232 and USB
- Protection class:IP 42
- Dimensions (W x H x D):160 x 85 x 270 mm
- Weight:2.7 kg
The RET control-visc has a high-quality stirring plate, which can be made of either stainless steel or porcelain, and a digital display that makes it easy to monitor and control the operating parameters. The microprocessor control ensures precise control of the stirring speed and temperature, while the smooth-running motor and strong magnetic field guarantee high stirring power.
Certifications and standards
The IKA magnetic stirrer RET control-visc complies with protection class IP 42 in accordance with DIN EN 60529, which means that it is protected against the ingress of solid foreign bodies and splash water. In addition, the device has Product Liability Insurance and a certificate for traceability, which provides additional safety and confidence in the quality of the product.
Application examples
The RET control-visc is ideal for a variety of applications in different laboratory environments:
- Chemical synthesis:precise control of reaction conditions for optimal results.
- Biotechnology: Homogenization of cell cultures and biological samples.
- Pharmaceutical research: production of emulsions and suspensions.
- Materials science:Investigation of the viscosity of liquids and pastes.
The device can be used with different flasks and stirring rods, which further increases its versatility. The RET control-visc is particularly suitable for specific applications such as viscosity trend measurement and the pH measurement function.
FAQs
How can the stirring speed be adjusted?
The stirring speed can be easily set using a rotary knob. The speed is shown on a TFT display both as a set value and as an actual value.
What safety functions does the RET control-visc offer?
The appliance has an adjustable safety circuit for the heating temperature (50 – 380 °C) and a breakage detection system for the stirring rod, which automatically stops operation in the event of a malfunction.
Can the RET control-visc be used with external temperature sensors?
Yes, the RET control-visc is equipped with connections for PT100/PT1000 dual sensors, which enable precise temperature measurement in the medium.
Which materials can be stirred with the RET control-visc?
The RET control-visc is suitable for a wide range of materials, including water, oils and viscous liquids. The maximum viscosity of the medium is 270 °C.
Conclusion
The IKA RET control-visc magnetic stirrer is a versatile and reliable laboratory device characterized by its precise control, robust design and extensive safety functions. With its high stirring capacity and the ability to use different flasks and stirring rods, it is ideal for a wide range of applications in chemical, biological and pharmaceutical laboratories. Similar to the IKA C-MAG HS 7 control magnetic stirrer, the RET control-visc offers excellent performance and ease of use.
| Width (magnetic stirrer, agitator): | 160 mm |
| Speed range max. (stirrer): | 1700 rpm |
| Speed range min (stirrer): | 50 rpm |
| Heating: | with hot plate |
| Height (magnetic stirrer, agitator): | 85 mm |
| Material (housing): | stainless steel |
| Model of stirrer: | magnetic stirrer |
| Stirring power (magnetic stirrer, agitator): | 9 W |
| Stirring positions: | one place |
| Stirring volume: | 20 l |
| Interface: | RS 232, USB |
| Protection category: | IP 42 |
| Temperature range: | up to +340 °C |
| Depth (magnetic stirrer, agitator): | 270 mm |
| Shipping weight: | 3,70 kg |
| Item weight: | 2,70 kg |
| IKA Magnetic stirrer with heating | RET control-visc |
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Motor rating output | 9 W |
| Direction of rotation | right |
| Speed display set-value | TFT |
| Speed display actual-value | TFT |
| Speed control | Turning knob |
| Speed range | 50 – 1700 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 20 – 80 mm |
| Self-heating of the set-up plate by max. stirring (RT: 22 °C/duration: 1h) | 28 +K |
| Heat output | 600 W |
| Temperature display set-value | TFT |
| Temperature display actual-value | TFT |
| Temperature unit | °C / °F |
| Heating temperature range | Room temperature + device self heating – 340 °C |
| Heat control | Turning knob |
| Temperature setting range | 0 – 340 °C |
| Temperature setting resolution of heating plate | 0.1 K |
| Connection for ext. temperature sensor | PT100/PT1000 (dual sensor) |
| Characteristics in the medium with temperature sensor | 1l M50 Oil at H1500 |
| Temperature medium max. | 270 °C |
| Heating rate medium | 7 K/min |
| Temperature setting resolution of medium | 0.1 K |
| Adjustable safety circuit | 50 – 380 °C |
| Set-up plate material | stainless steel 1.4301 |
| Set-up plate dimensions | Diameter 135 mm |
| Intermittend mode | yes |
| Viscosity trend measurement | yes |
| Break detection stirring bar | yes |
| Timer | yes |
| pH measurement | yes |
| Graph function | yes |
| Programs | yes |
| Sensor in medium detection (Error 5) | yes |
| Weighing function | yes |
| Weighing range | 10-5000 g |
| Weighing accuracy | ±(0.3%+2) g |
| Load capacity weighing function max. | 5 kg |
| Dimensions (W x H x D) | 160 x 85 x 270 mm |
| Weight | 2.7 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80.00% |
| Protection class according to DIN EN 60529 | IP 42 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 220 – 240 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 650 W |
