Beschreibung

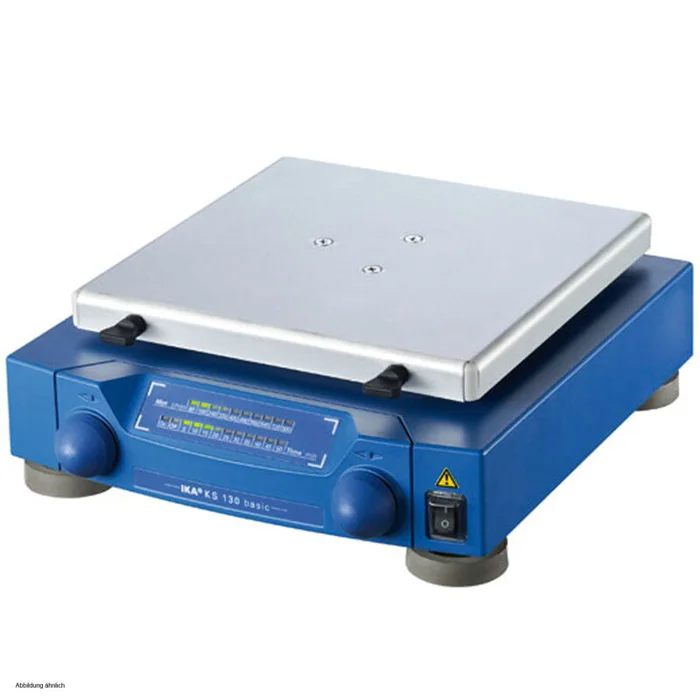

IKA KS 130 basic Package
The IKA KS 130 basic Package is an essential piece of equipment for any laboratory that requires precise mixtures and reliable results. This circular and orbital shaker is ideal for applications in bacteriology, biotechnology, virology and diagnostics. With its robust design and versatility, the IKA KS 130 basic Package stands out from other shakers on the market. Comparisons such as the IKA KS 130 basic small shaker show that IKA products impress with their durability and user-friendliness.
Technical details and functions
The IKA KS 130 basic package offers a wide range of functions that make it a valuable tool in any laboratory:
- Movement type:Circular
- Shaking stroke:4 mm
- Maximum shaking weight:2 kg (incl. attachment)
- Motor power:45 W (input), 10 W (output)
- Speed range:0 – 800 rpm, adjustable from 80 rpm
- Speed display:LED line
- Timer:Yes, with LED display, adjustable from 5 to 50 minutes
- Operating mode:Timer and continuous operation
- Dimensions:270 x 98 x 316 mm
- Weight:8.8 kg
- Ambient temperature range:5 – 50 °C
- Relative humidity: Up to 80
- Protection class:IP 21 according to DIN EN 60529
- Voltage:220 – 240 V / 100 – 120 V, frequency: 50/60 Hz
Certifications and standards
The IKA KS 130 basic package fulfills protection class IP 21 according to DIN EN 60529, which means that it is protected against dripping water and can therefore be used safely in various laboratory environments.
Application examples
The IKA KS 130 basic Package can be used for a wide range of applications and is ideal for
- Bacteriology:Precise mixing of culture media for bacterial cultures.
- Biotechnology: Homogenization of cell cultures and biological samples.
- Virology:Preparation of virus samples for further analysis.
- Diagnostics: Mixing reagents and samples for diagnostic tests.
FAQs
How do I set the speed of the IKA KS 130 basic package?
The speed can be set via a user-friendly control panel. The range is from 0 to 800 rpm, with a minimum adjustable speed of 80 rpm.
Can the IKA KS 130 basic Package be used in continuous operation?
Yes, the shaker is suitable for continuous operation and can be operated continuously without overheating or loss of performance.
What safety features does the IKA KS 130 basic Package offer?
The shaker has an error code display that informs the user if problems occur. The device is also protected against dripping water in accordance with IP 21, which offers additional safety in the laboratory environment.
Conclusion
The IKA KS 130 basic Package is a versatile and reliable shaker that can be used in various laboratory applications. With its robust design, user-friendly operation and precise performance, it is an excellent choice for laboratories that focus on quality and reliability.
| Shaking weight max.: | 2 kg |
| Shaker speed max.: | 800 rpm |
| Shaker type: | orbital shaker |
| Shipping weight: | 12,00 kg |
| Item weight: | 8,80 kg |
| Type of movement | orbital |
| Shaker diameter [mm] | 4 |
| Permissible shaking weight (incl. attachment) [kg] | 2.0 |
| Motor rating input [W] | 45 |
| Motor rating output [W] | 10 |
| Permissible ON time [%] | 100 |
| Speed min (adjustable) [rpm] | 80 |
| Speed range [rpm] | 0 – 800 |
| Speed display | LED line |
| Timer | yes |
| Timer display | LED line |
| Time setting range [min] | 5 – 50 |
| Operating mode | timer and continuous operation |
| Shaking table lock | no |
| Dimensions (W x H x D) [mm] | 270 x 98 x 316 |
| Weight [kg] | 8.8 |
| Permissible ambient temperature [°C] | 5 – 50 |
| Permissible relative moisture [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | no |
| Analog output | no |
| Voltage [V] | 220 – 240 / 100 – 120 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 45 |
