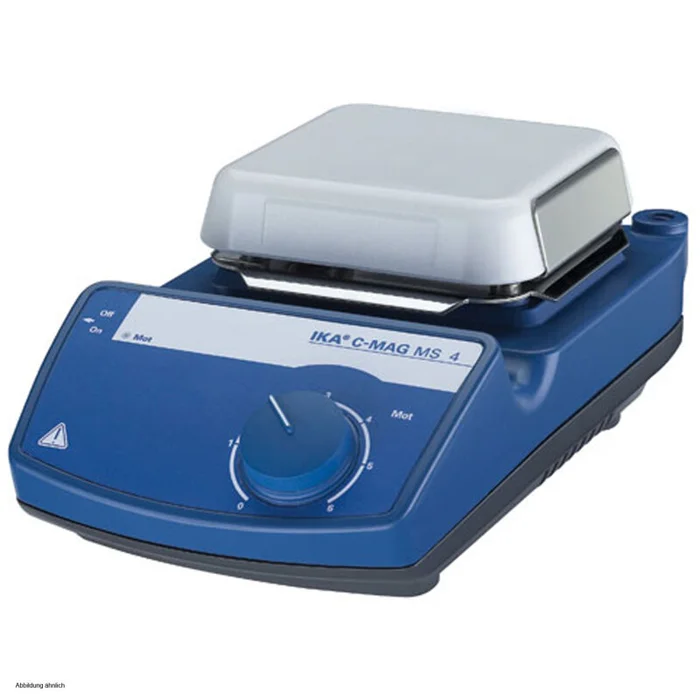

IKA C-MAG MS 4 IKAMAG®
The IKA C-MAG MS 4 IKAMAG® is a classic magnetic stirrer that is characterized by its practical design and robust functions. This magnetic stirrer is ideal for use in laboratories that require a reliable and powerful stirring solution. With a stirring capacity of up to 5 liters and a maximum speed of 1500 rpm, the IKA C-MAG MS 4 IKAMAG® offers remarkable performance that sets it apart from similar products on the market. Comparisons such as with the IKA C-MAG HS 4 digital IKAMAG® show that the IKA C-MAG MS 4 IKAMAG® impresses with its versatility and user-friendliness.
Technical data and functions
The IKA C-MAG MS 4 IKAMAG® offers a wide range of functions that make it an indispensable tool in any laboratory:
- Stirring volume:Up to 5 liters
- Stirring positions:Single digit
- Speed range:100 – 1500 rpm
- Material of the stirring plate:Ceramic
- Dimensions (W x H x D):150 x 105 x 260 mm
- Weight: 3 kg
- Protection class:IP 21
- Temperature range:+5°C to +40°C (80% humidity)
- Voltage:230 / 120 / 100 V
- Frequency:50/60 Hz
- Device power consumption:30 W
Certifications and standards
The IKA C-MAG MS 4 IKAMAG® is CE-certified and meets the requirements of DIN EN 60529 (protection class IP 21). In addition, the device includes product liability insurance (PL Insurance) and a certificate for traceability, providing additional security and confidence in the quality of the product.
Application examples
The IKA C-MAG MS 4 IKAMAG® is versatile and ideally suited for various applications in laboratories:
- Chemical synthesis:ideal for mixing and stirring chemicals in reaction vessels.
- Biotechnology:Perfect for cultivating microorganisms and cell cultures.
- Pharmaceutical research:Suitable for the preparation of solutions and suspensions.
- Food and beverage industry:Can be used for the production of emulsions and mixtures.
FAQs
How is the stirring speed set?
The stirring speed of the IKA C-MAG MS 4 IKAMAG® can be set individually on a scale from 0 to 6, which enables precise control.
Is the magnetic stirrer suitable for use with aggressive chemicals?
Yes, the ceramic stirring plate is resistant to aggressive chemicals and offers a long service life.
Can the IKA C-MAG MS 4 IKAMAG® be used in a humid environment?
The magnetic stirrer is suitable for use in environments with a relative humidity of up to 80% and temperatures between +5°C and +40°C.
What safety functions does the device offer?
The IKA C-MAG MS 4 IKAMAG® has an independent safety circuit and a locking mode to ensure safe operation.
Conclusion
The IKA C-MAG MS 4 IKAMAG® is a powerful and versatile magnetic stirrer that is characterized by its robust design and user-friendly functions. With its high stirring capacity and precise control options, it is the ideal choice for laboratories that require a reliable stirring solution. Whether in chemical synthesis, biotechnology or pharmaceutical research, the IKA C-MAG MS 4 IKAMAG® offers the performance and reliability required for demanding applications.
| Width (magnetic stirrer, agitator): | 150 mm |
| Speed range max. (stirrer): | 1500 rpm |
| Speed range min (stirrer): | 100 rpm |
| Heating: | without heating |
| Height (magnetic stirrer, agitator): | 105 mm |
| Material (plate): | ceramic |
| Model of stirrer: | magnetic stirrer |
| Stirring positions: | one place |
| Stirring volume: | 5 l |
| Protection category: | IP 21 |
| Controller: | internal |
| Temperature range: | +5°C up to +40°C (80% humidity) |
| Depth (magnetic stirrer, agitator): | 260 mm |
| Shipping weight: | 3,14 kg |
| Item weight: | 2,72 kg |
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) [l] | 5 |
| Stirring quantity max. (H2O) [l] | 5 |
| Motor rating input [W] | 15 |
| Motor rating output [W] | 1.5 |
| Speed display | scale |
| Speed range [rpm] | 100 – 1500 |
| Speed control | scale 0 – 6 |
| Set-up plate material | ceramic |
| Set-up plate dimensions [mm] | 100 x 100 |
| Dimensions (W x H x D) [mm] | 150 x 105 x 260 |
| Weight [kg] | 3 |
| Permissible ambient temperature [°C] | 5 – 40 |
| Permissible relative moisture [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 230 / 120 / 100 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 30 |
