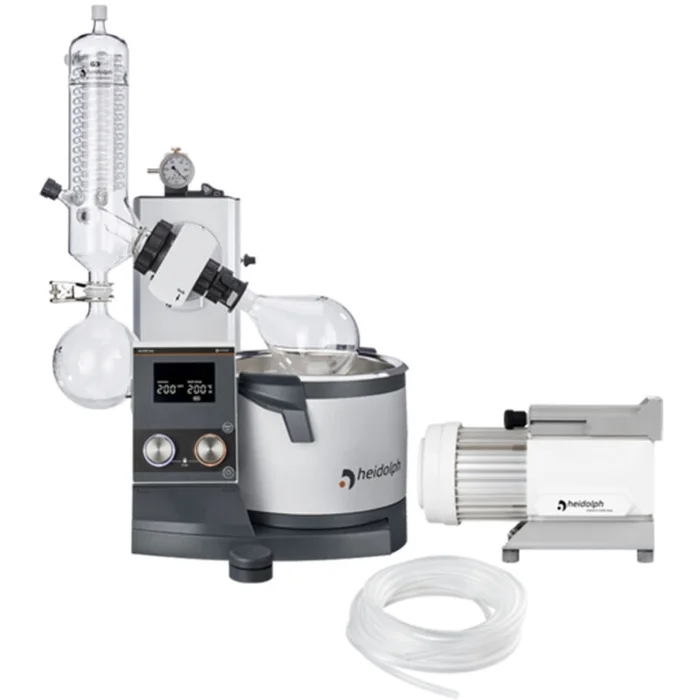

Heidolph Hei-VAP Core Package Basic

Beschreibung

Heidolph Hei-VAP Core Package Basic

The Heidolph Hei-VAP Core Package Basic is a powerful rotary evaporator that has been specially developed for professional applications such as scientific institutes and advanced research purposes. With its outstanding quality and advanced features, this device offers first-class support in various laboratory applications. Compared to similar products such as the Heidolph Hei-VAP Core Package All-round, the Basic package impresses with its user-friendliness and precise control options.

Performance features and operation

The Hei-VAP Core Package Basic is equipped with a manual vacuum regulator and offers a wide range of additional functions. The precise vacuum pump, such as the Rotavac Valve Tec, ensures optimum working conditions. The device has a manual lift and a vertical glass set G3 as well as an integrated vacuum regulator, which enables immediate operation via the enclosed hose set.

• Heating and cooling: The rotary evaporator enables both heating and cooling.
• Clear operating concept: The reduced and clear design of the operating concept enables quick and easy control.
• Setting the rotation speed: The rotation speed can be set without difficulty or advanced knowledge.
• TÜV-Süd seal: The appliance has been awarded the TÜV-Süd seal, which underlines its high quality and professional certification.
• 3.5″ LCD display: The integrated display shows the correct heating bath temperature at all times.
• Robust base plate: The robust base plate ensures a firm hold during work processes.

Technical details

The Hei-VAP Core Package Basic offers outstanding technology in terms of rotation and precision. The most important technical details are summarized here:

• Dimensions: 739 mm x 487 mm x 845 mm
• Cooling surface: 1,400 cm²
• Maximum size of the evaporator flask: 5 liters
• Weight without glass insert: 15 kg
• Overtemperature protection: Switches off at 5 °C above set temperature
• Temperature range: 20 °C to 210 °C
• Heat output: 1300 watts
• Protection class: IP 20

Application examples

The Hei-VAP Core Package Basic is ideal for various laboratory applications, including

• Distillation: to separate liquids by evaporation and condensation.
• Concentration: To reduce the volume of solutions.
• Drying: To remove solvents from samples.
• Recrystallization: To purify substances by dissolving and recrystallizing.

Safety features

The device has several safety features that safeguard the work process:

• Lock function: Prevents accidental changes to the rotation speed.
• Stand-by mode: Enables operation to be resumed quickly without restarting.
• LED rings: Indicates machine activity from a distance.
• Overheating warnings: Warnings are issued when the heating bath temperature exceeds 50 °C.

FAQs

How is the rotation speed set?

The rotation speed can be set precisely using the two separate rotary knobs with integrated and dynamic control.

Which substances can be used with the Hei-VAP Core Package Basic?

The device is suitable for a wide range of solvents and chemicals commonly used in laboratory applications, such as ethanol, methanol and acetone.

Is the device suitable for continuous operation?

Yes, the Hei-VAP Core Package Basic is designed for continuous operation and has a stand-by mode that allows operation to be resumed quickly.

Conclusion

The Heidolph Hei-VAP Core Package Basic is a versatile and powerful rotary vaporizer that is characterized by its user-friendliness, precise control options and high safety standards. With its advanced features and robust design, it is an excellent choice for professional laboratory applications. Similar products such as the Heidolph Hei-VAP Core Handlift also offer interesting alternatives for specific requirements.
