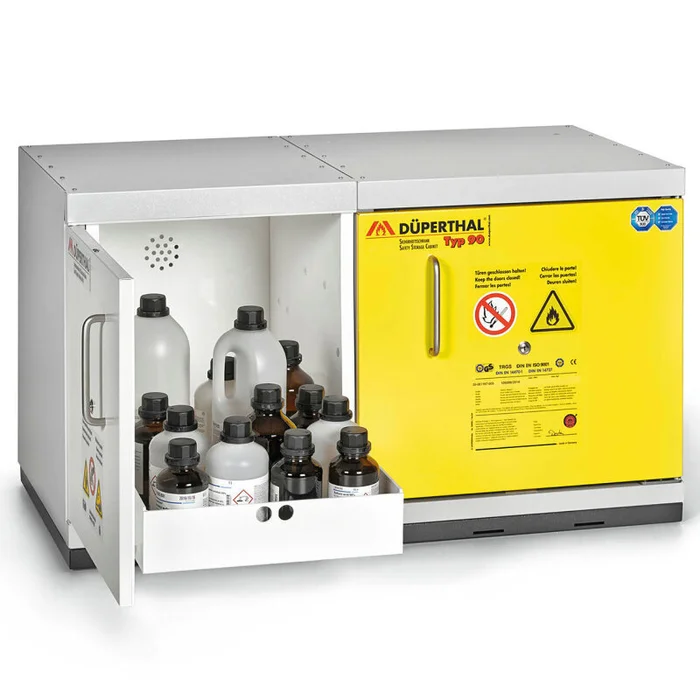

Düperthal underbench cabinet type 90 HSC UTS ergo LD
The Düperthal Type 90 HSC UTS ergo LD underbench cabinet from DÜPERTHAL SICHERHEITSTECHNIK is a highly specialized safety cabinet that is ideal for use in laboratories and medical facilities. This cabinet provides secure storage for a variety of materials such as liquids, gas cylinders, medicines, solvents and acids. Thanks to its robust construction and high fire resistance rating of 90 minutes, it is a reliable choice for environments where safety is paramount. Similarly equipped products such as the Düperthal underbench cabinet type 90 UTS ergo XL also offer high safety standards.
Technical data and features
The Düperthal underbench cabinet type 90 HSC UTS ergo LD is characterized by the following technical data and equipment features:
- Fire resistance:90 minutes (type 90)
- External dimensions (W x D x H):1100 x 595 x 631 mm
- Internal dimensions (W x D x H):
- Left side: 418 x 543 x 501 mm
- Right side: 503 x 463 x 480 mm
- Interior fittings:Pull-out tray, perforated metal insert
- Doors:Hinged doors
- Collecting volume:
- Left side: 12 liters
- Right side: 11.3 liters
- Maximum volume of the largest individual container:10 liters
- Load capacity per footprint:
- Left side: 20 kg
- Right side: 45 kg
- Base height:35 mm
- Earthing connections:2
- Exhaust air connection:NW 75
- Access protection:Cylinder lock
- Ventilation concept:Ventilation at each enclosure level, control of the ventilation shut-off flaps
- Base design:Classic, slotted with floor extraction
- Automatic self-closing in case of fire:Yes
Certifications and standards
The Düperthal underbench cabinet type 90 HSC UTS ergo LD complies with numerous important certifications and standards that underline its safety and reliability:
- DIN EN 14470-1:Type examination by materials testing institute (MPA)
- DIN EN 14727:Further testing by TÜV
- TRGS 510 Annex 3: Further testing by TÜV
- GS mark:Test seal from TÜV
- CE conformity:Available
- Earthing connection according to TRGS 727:Available
Application examples
The Düperthal underbench cabinet type 90 HSC UTS ergo LD is versatile and is particularly suitable for the following areas of application:
- Laboratories:Safe storage of chemicals, solvents and acids.
- Medical facilities:Storage of medicines and medical liquids.
- Industry: Storage of flammable liquids and gas cylinders.
FAQs
How many earthing connections does the cabinet have?
The cabinet has two earthing connections that are certified in accordance with TRGS 727.
Is the cabinet suitable for storing acids and alkalis?
Yes, the cabinet is certified as an acid/alkali cabinet and offers safe storage for these substances.
What safety features does the cabinet offer in the event of fire?
The cabinet has an automatic and blockage-free self-closing system in the event of fire, which is activated by a thermocouple.
Can the cabinet be ordered in different sizes?
Yes, products similar to the Düperthal underbench cabinet type 90 UTS ergo XL offer different sizes and equipment variants.
Conclusion
The Düperthal underbench cabinet type 90 HSC UTS ergo LD is an excellent choice for anyone who requires the highest safety standards in laboratories and medical facilities. With its robust design, extensive certifications and versatile application options, it offers a reliable solution for the safe storage of hazardous substances.
| Width (Safety storage cabinets): | 1100 mm |
| Width inside (Safety storage cabinets): | 418 mm, 503 mm |
| Fire resistance: | 90 min |
| Height (Safety storage cabinets): | 631 mm |
| Height inside (Safety storage cabinets): | 480 mm, 501 mm |
| Interior: | pull-out tray, perforated sheet insert |
| Cabinet: | safety storage cabinet, underbench cabinet, cabinet for acids / alkalis, combined safety storage cabinet |
| Depth (Safety storage cabinets): | 595 mm |
| Depth inside (Safety storage cabinets): | 463 mm, 543 mm |
| Doors, drawers: | wing doors |
| Item weight: | 210,00 kg |
| Düperthal Under-bench cabinet | HSC UTS ergo LD |
| Use | passive storage |
| Fire resistance (FR) | Type 90 |
| Cabinet W x D x H (mm) exterior | 1100 x 595 x 631 |
| Cabinet W x D x H (mm) interior | Width L: 418 / R: 503 Depth L: 543 / R: 463 Height L: 501 / R: 480 |
| Base height (mm) | 35 |
| Gross weight (kg) | |
| Type-tested by recognised test institutes according to | DIN EN 14470-1 |
| TÜV-tested according to | DIN EN 14470-1, EK5/AK4 09-10 |
| Further TÜV testing (1) | DIN EN 14727 |
| Further TÜV testing (2) | TRGS 510 Annex 3 |
| Mark of approval by TÜV | GS mark |
| Declaration of conformity | CE |
| Earthing connection according to TRGS 727 available | 2 |
| Number of earthing connections | 2 |
| Collection volume (l) | L: 12 / R: 11.3 |
| Maximum volume of the largest individual container (l) | L: 10 / R: 10 |
| Load-bearing capacity per standing surface with uniformly distributed load (kg) |
L: 20 / R: 45 |
| Access control with cylinder lock | yes |
| Visual inspection of ventilation cut-off flaps | yes |
| Enhanced ventilation concept – ventilation in every cabinet level | yes |
| Base version | classical, with slots and floor extraction |
| In case of fire, automatic and blockage-free self-closing via thermocouple |
yes |
| Exhaust air connection included | NW 75 |
